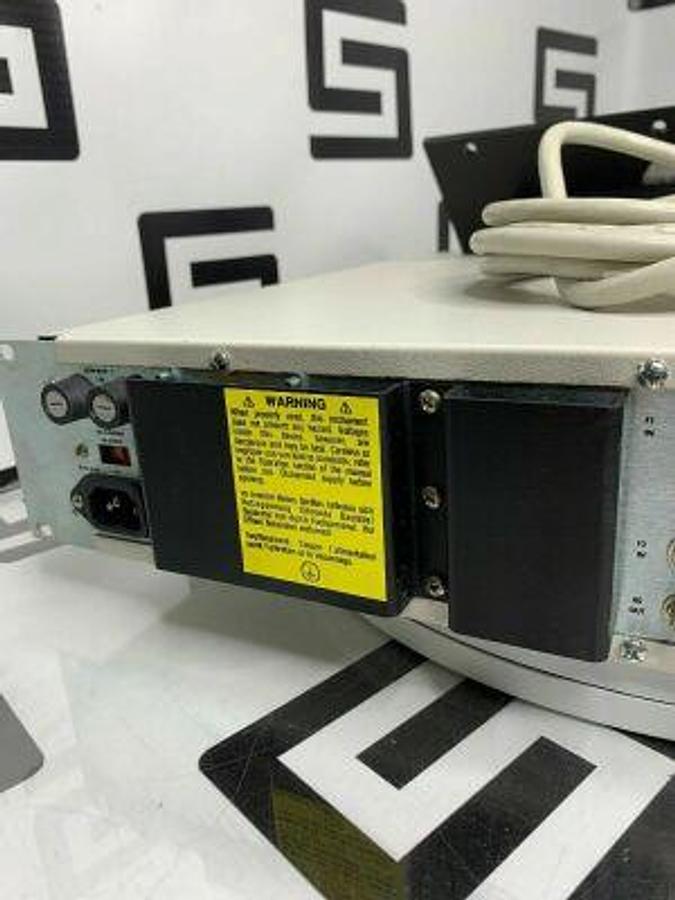

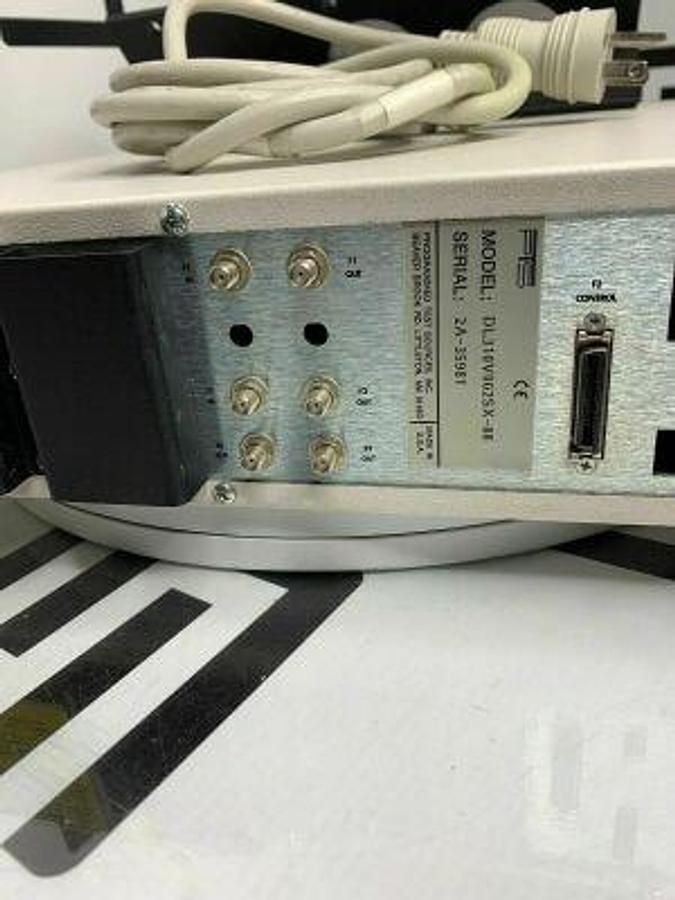

PTS DL310V002SX-88 Frequency Synthesizer DUAL CHANNEL .1-310 MHz D310

Number of channels 2 fully independent output channels Frequency Range: 0.100 000 0 to 309.999 999 9 MHz Resolution: 0.1 Hz Accuracy: same as frequency standard Control: remote by TTL-level parallel entry BCD or GPIB(optional) Switching Time (to within 0.1 radian at new frequency) 100 MHz-10 MHz digits: 20 µseconds 1 MHz digit: 5 µseconds 100 KHz-0.1 Hz digits: 1 µsecond transient, 2 µsecond delay Phase-Continuous 100 KHz through 0.1 Hz digits Switching Range (~1 MHz bandwidth) Output Level: +3 to +13 dBm (1V max, 50 Ω ) Flatness: ± 0.5 dB Impedance: 50 Ω Control: preset and remote by analog voltage Spurious (at full power output, +13 dBm) Outputs Discrete: -70 dBc Harmonics: -30 dBc at full output (-40 dBc at lower levels) Phase Noise: -63 dBc (0.5 Hz to 15 KHz) including effects of internal standard £ (1Hz): 100 Hz/ -105 dBc, 1 KHz/ -115 dBc, 10 KHz/ -123dBc, 100 KHz/ -127 dBc Noise Floor: - 135 dBc/Hz Frequency Internal: OCXO or TCXO Standard 3x10-9/day 1x10-8/day ± 1x10-8/0-50° C ± 1x10-6/0-50° C 1x10-6/year 2x10-6/year External: 10.000 MHz, 0.4-2.0 Vrms into 300 Ω ; 5.000 MHz, 0.5-2.0 Vrms into 300 Ω Aux. Output: 10.000 MHz, 0.4 Vrms into 50 Ω (Note: internal or external standard required for operation) General Operating Ambient: 0 - 50° C, 95% R.H Power: 110 - 125V, 50 - 400 Hz, 75W (100, 220, 240V optional) Dimensions: 19 x 5.25 x 17.5 inches (relay rack or bench cabinet) Weight: 40 lbs. Optional Phase Rotation: 0-360° in 0.225° steps two fully independent channels, each covering 0.1-310 MHz +3 to +13 dBm output low phase noise fast switching, 3-20 µs fully programmable, BCD or GPIB DDS standard with phase-continuous switching low power consumption, high reliability Tested and working as it should. â_x0080_¢ For payment please click Buy it now option for payment and you can complete payment using Stripe account or credit card, Once payment is received your item will be shipped within two business days Buy with confidence. All of our items have a 30 Day money back guarantee! Customer satisfaction is of utmost importance. H52
